Description
Material | Aluminum alloy（1100/3003） | More material choice can contact with us |
Surface Treatment | Powder coating, Roll coating, Film covered, thermal transfer | More surface treatment can contact with us |
Shape | Strip | More out-shape can contact with us |
Certificate | ISO、SGS |
|
Packaging Details | Carton |
|
Lead Time | About 20days after receiving deposit |
|

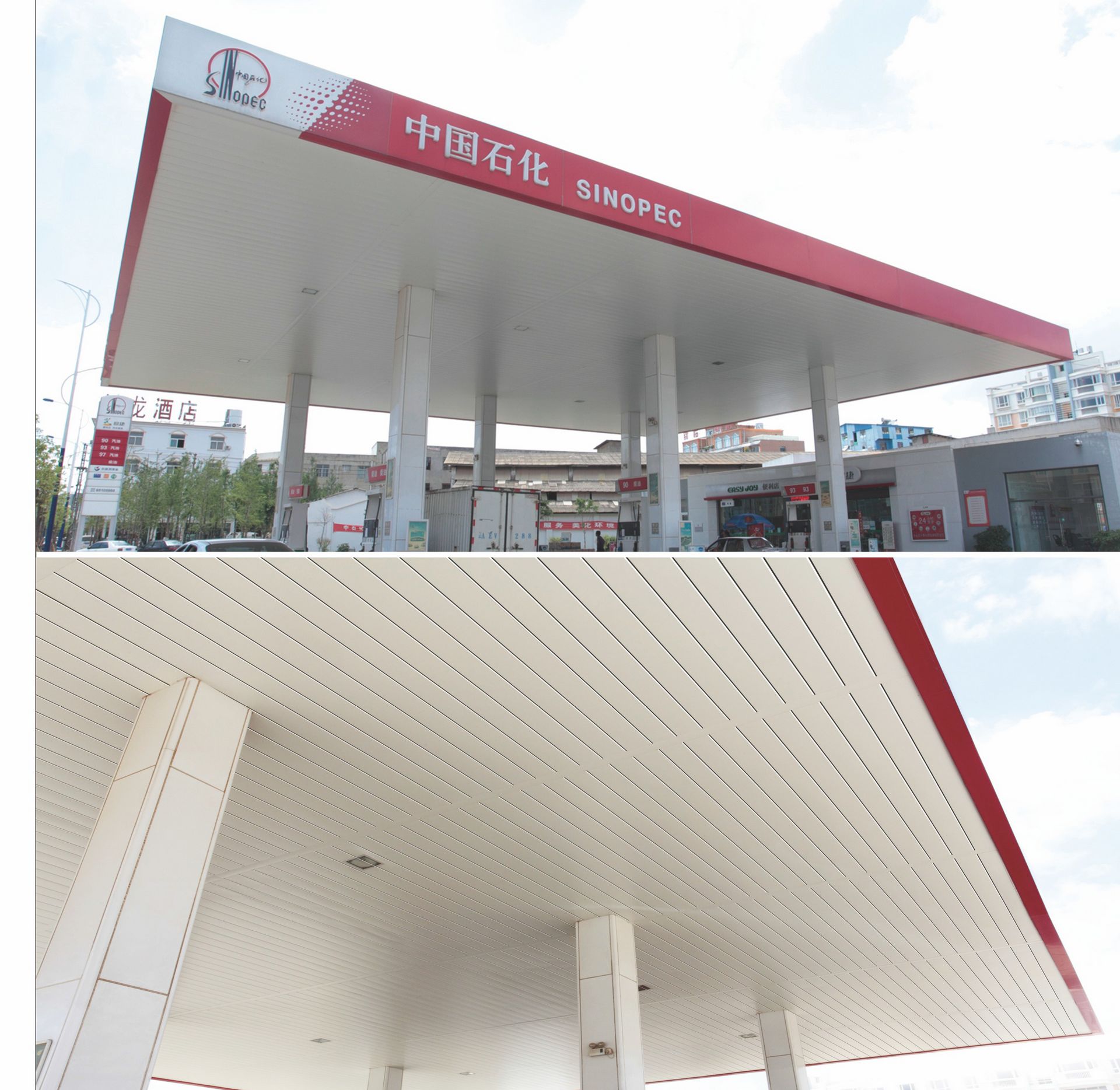

Application | Large area of engineering projects and all kinds of buildings, home environment can be used | |

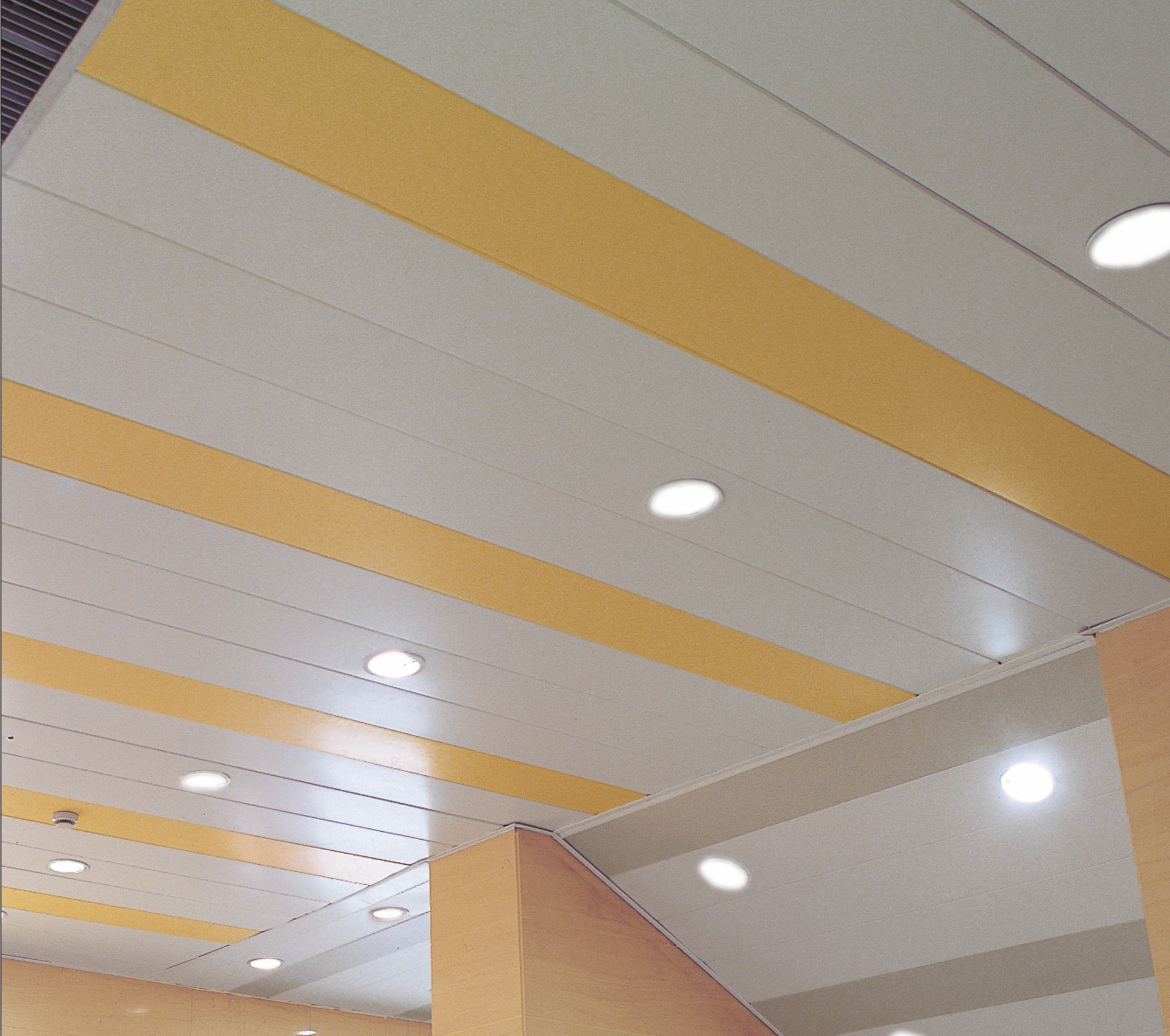

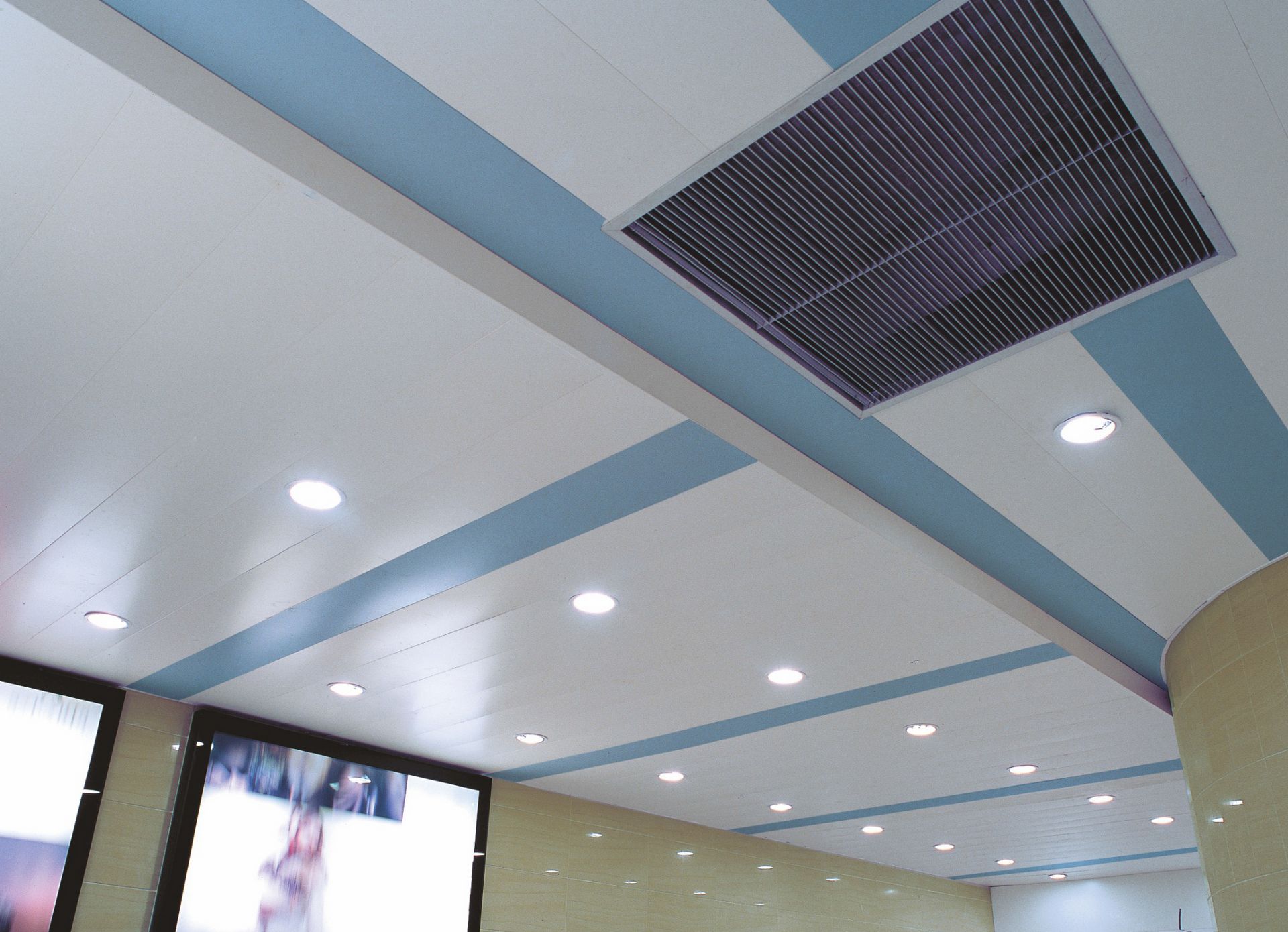

Advantage | The surface is flat, smooth and visual widely. Each ceiling plate can be separately install, remove and clean. The systems will look more beautiful with mix size and mix color. | |
Product specification
Shape | Edge Type | Width（mm） | Height (mm) | Thickness (mm) | Length（m） |
C-shape | Beveled/Square Edge | 100、150、200、300 | 15 | 0.5~1.0 | Max 6m |
S-shape | Beveled Edge | 300 | 15、30 | 0.6~1.2 | Max 6m |
U-shape |
| 80、185、285 | 12~15 | 0.5~1.0 | Max 6m |
H-shape | Square Edge | 150、200、300、400 | 20、25、29 | 0.6~1.0 | Max 6m |
G-shape | Square Edge | 100、150、200、300 | 11、15 | 0.6~1.0 | Max 6m |
More specifications can contact with us. | |||||

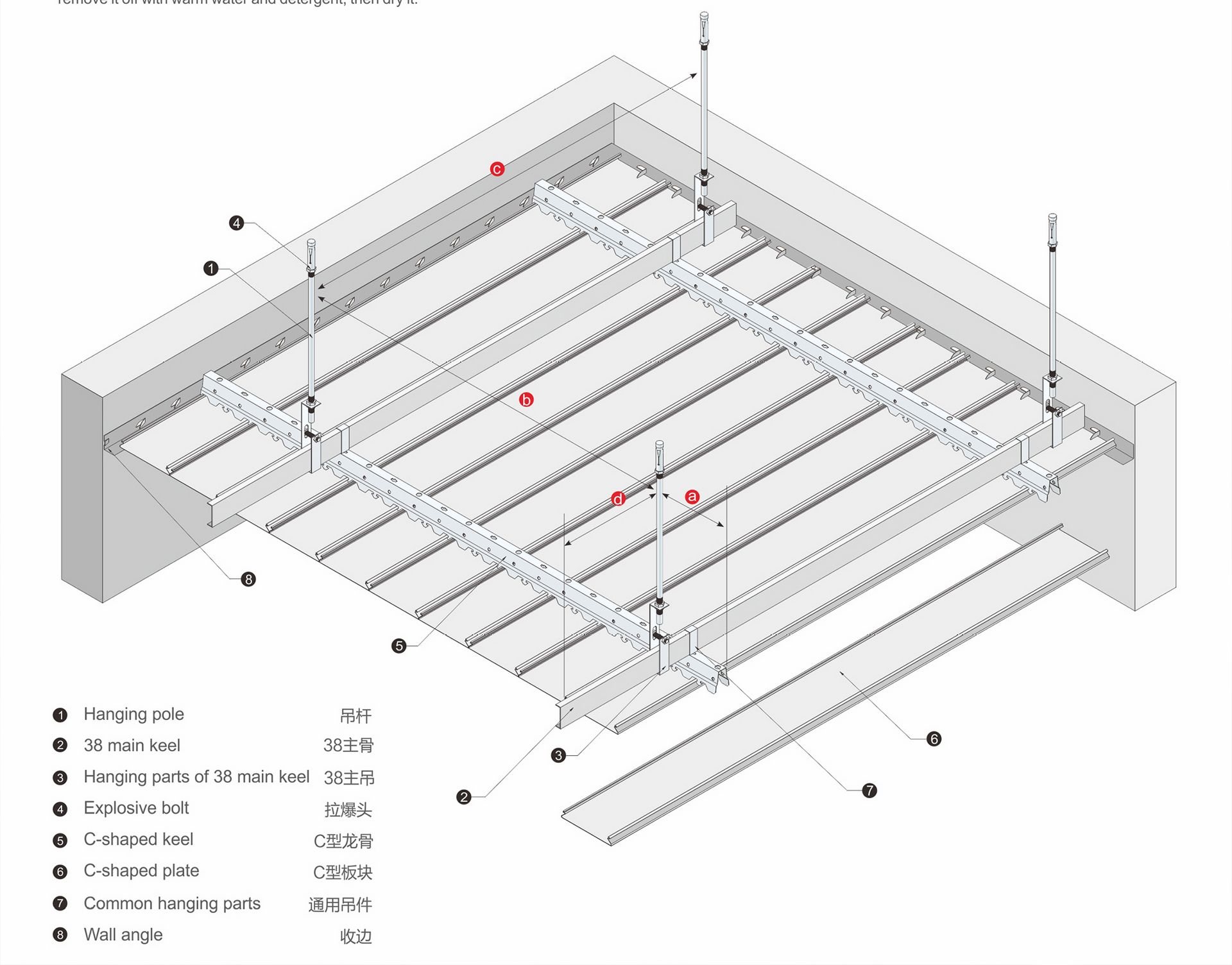

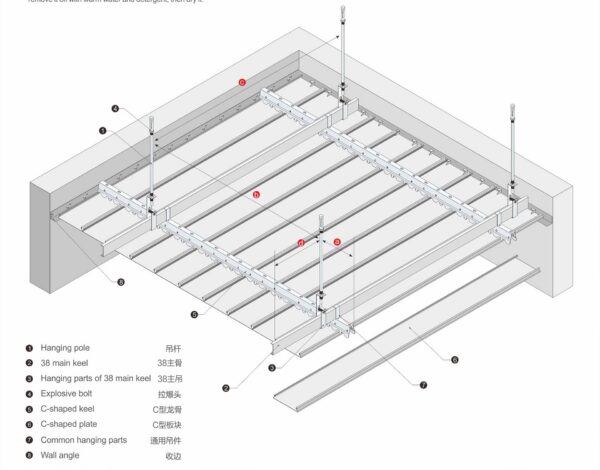

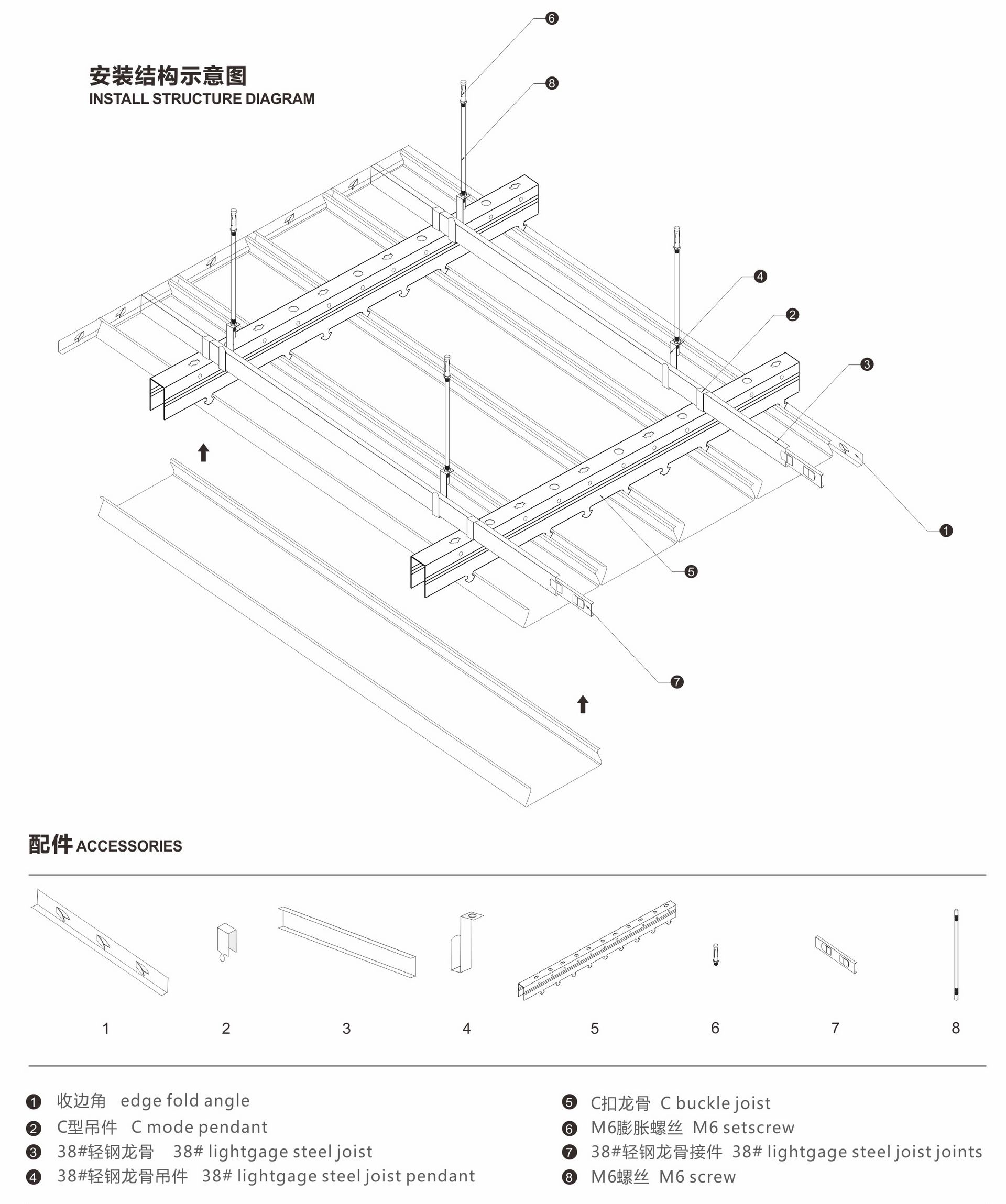

Installation
- Install the wall angle in the same height;
- Lift the 38 main keel with hanging pole, explosive bolt and 38 main hanger;
- Connect the C-1 keel and the 38 main keel with common hanging parts, adjust the whole hanging system to the same height.
- Lightly press the two parallel sides of the gusset plate into the seam of the triangle keel. First, install a row of ceiling on the transverse and longitudinal sides, determining that they are perpendicular to each other, then install the rest of the ceiling;
- Glove must be worn when installing the panel surface. If finger marks or stains are left accidentally, it can be cleaned with industrial alcohol with water and wiped dry.
