Description
Product | Lay in Ceiling |
|
Material | Aluminum alloy（1100/3003） | More material choice can contact with us |
Surface Treatment | Powder coating, Roll coating, Film covered | More surface treatment can contact with us |
Shape | Square |
|
Certificate | ISO、SGS |
|
Packaging Details | Carton |
|
Lead Time | About 20days after receiving deposit |
|

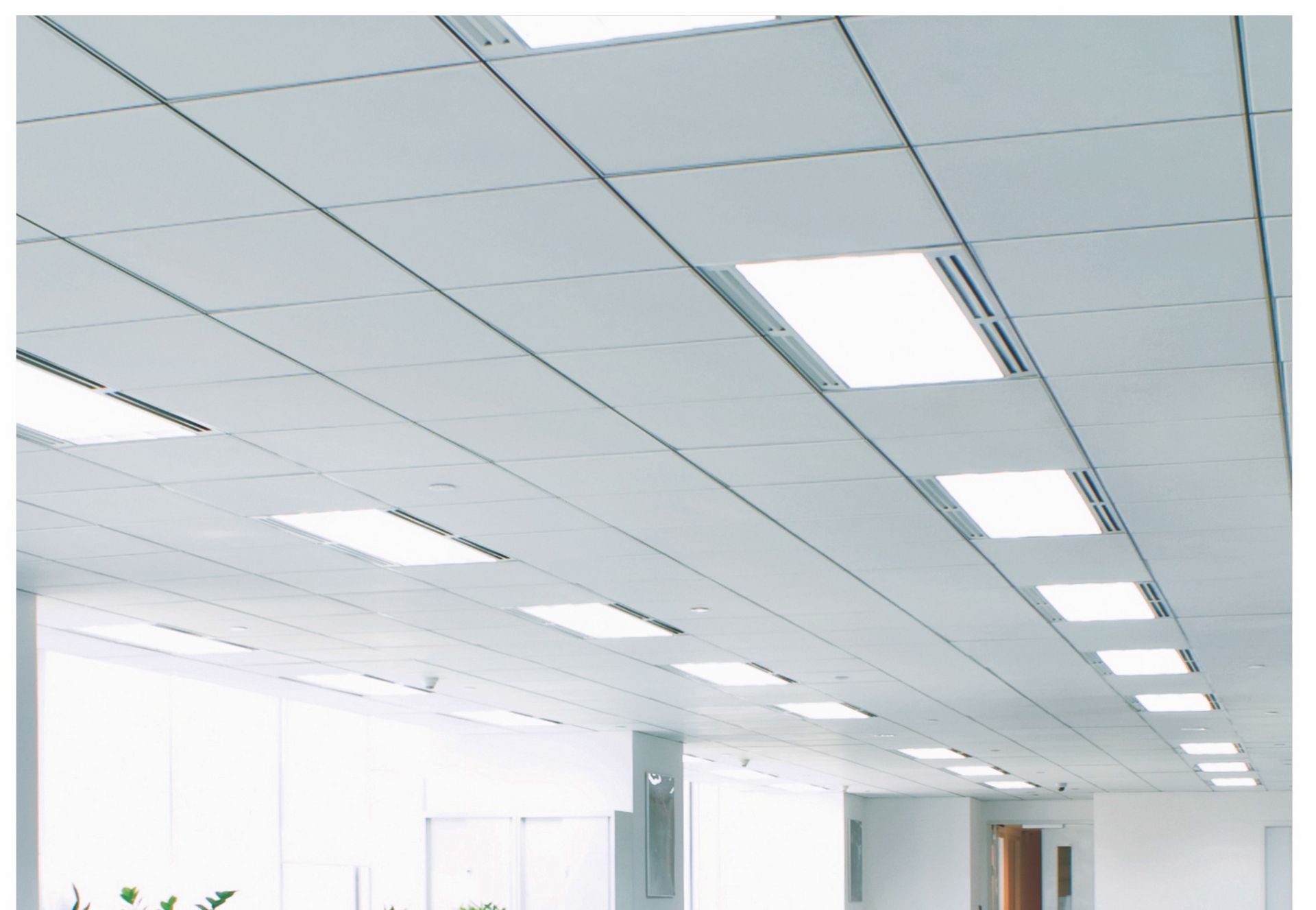

Application | Mainly used in large area of engineering projects, such as supermarket, bank, hospital, exhibition hall and other public places | |
Advantage | With its risible structure and unique appearance, lay-in ceiling owns strong functional and decorative effects. It has the advantages of stability, easy to install and replace, corrosion prevention, moisture proof, sound-absorbing and inflaming retarding. | |

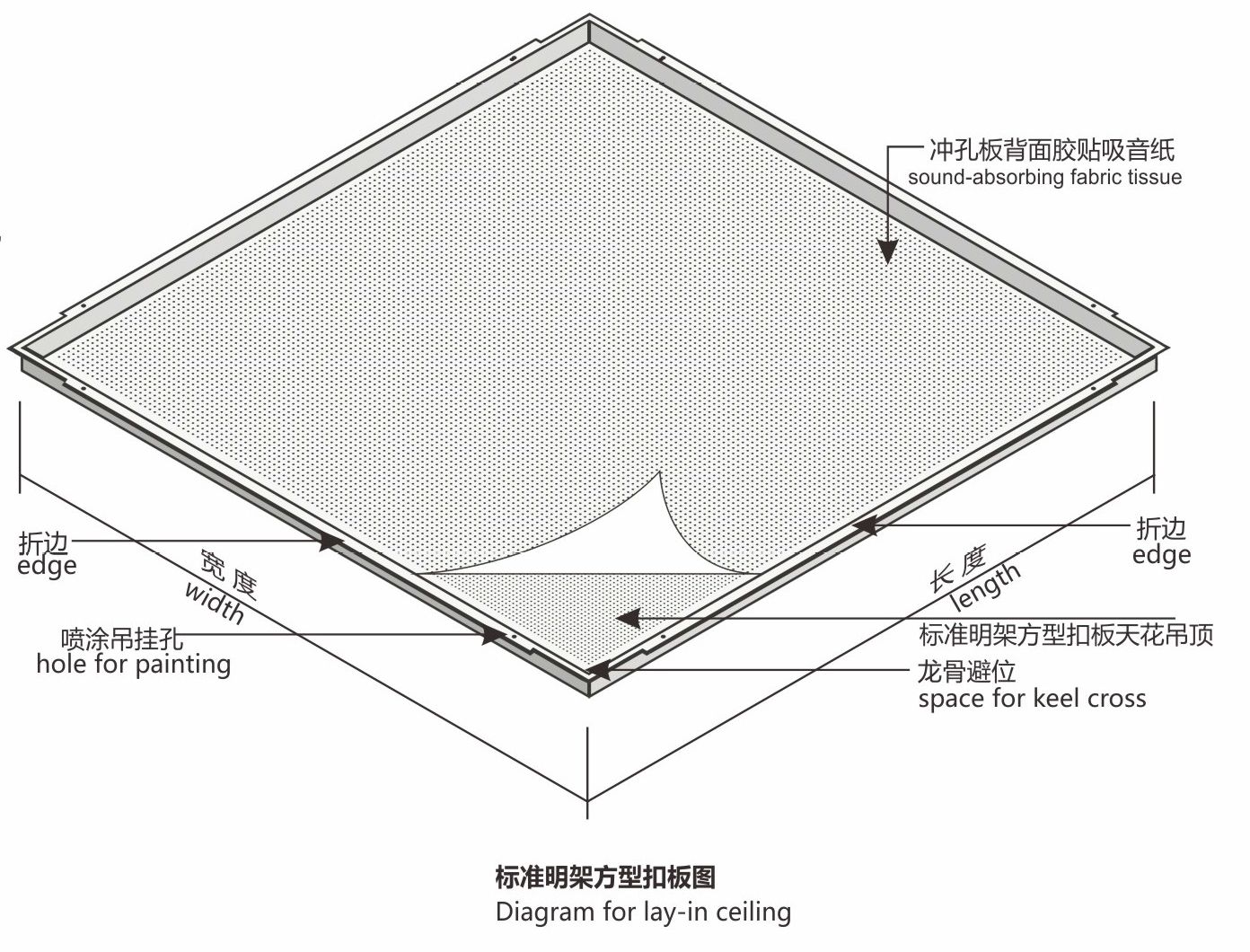

Product specification
| Overall size（mm） | Visible size（mm） | Thickness (mm) | Side Height (mm) | Edge Type |
| 595*595 | 585*585 | 0.5-1.0 | 4.5、8、9、10 | Square Edge |
| 603*603 | 585*585 | |||
| 595*595 | 575*575 |

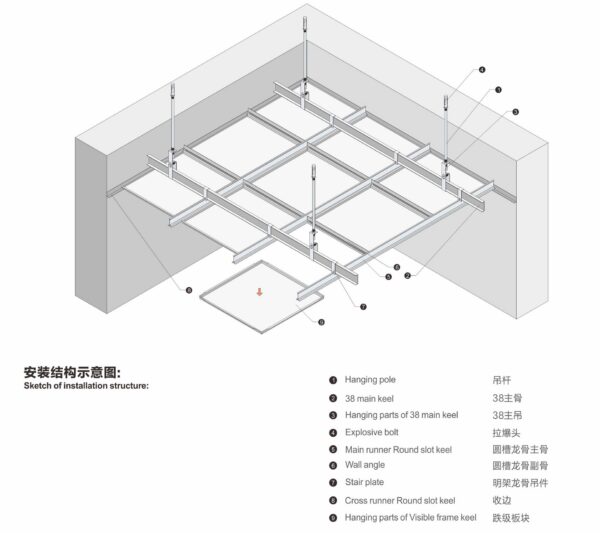

Installation
- According to the same level height, install the wall angle;
- Install the main keel with suspending rod and suspending parts.
- Inserting the sub keel into the main keel, adjusting to the same height.
- Placing the ceiling plate into the square.
