Description
Material | Aluminum alloy（1100/3003） | More material choice can contact with us |

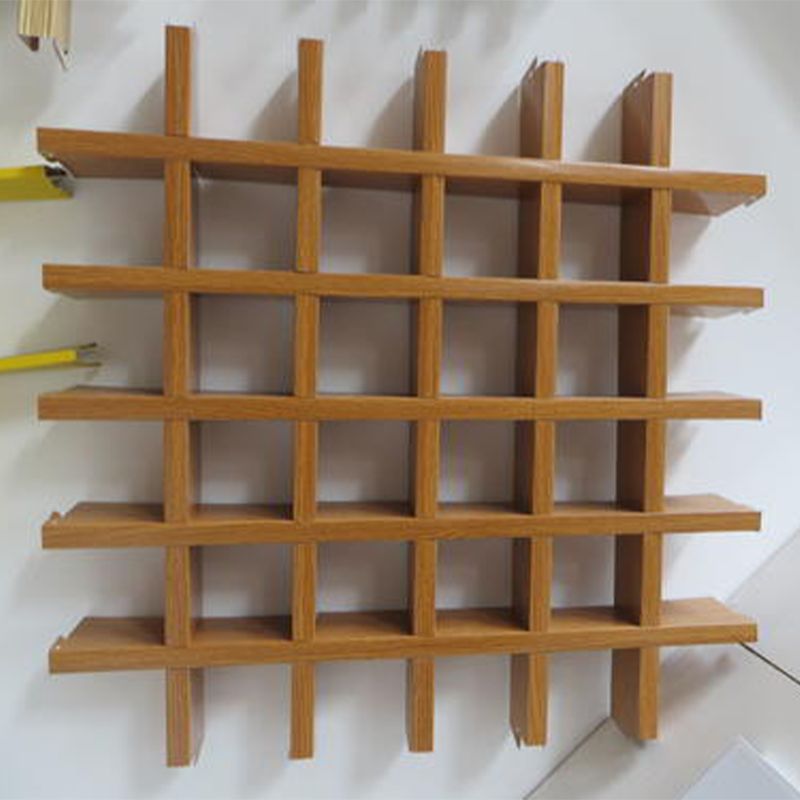

Surface Treatment | Powder coating, Roll coating, Film covered | More surface treatment can contact with us |

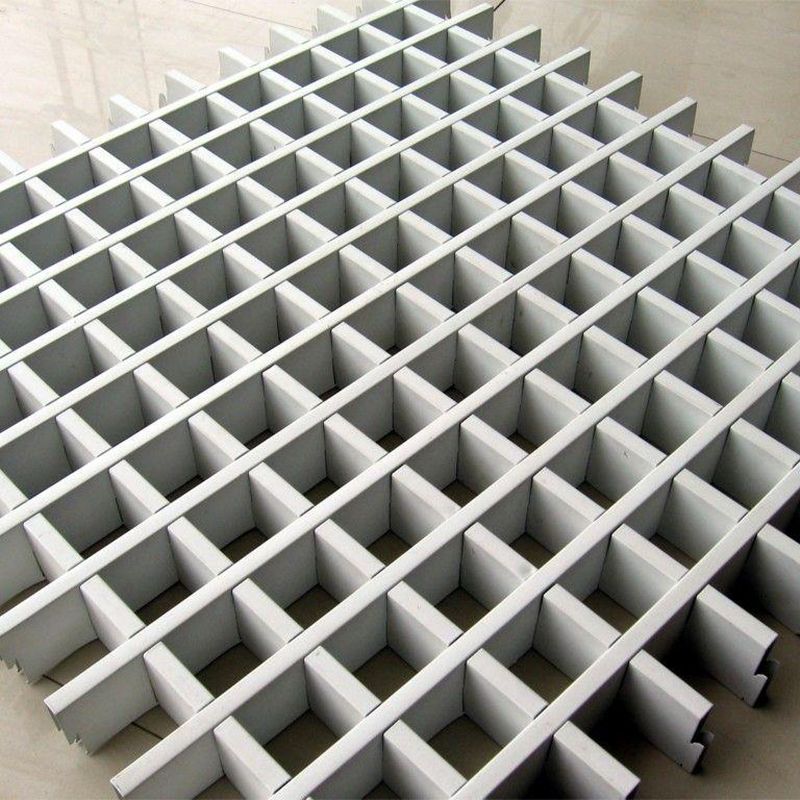

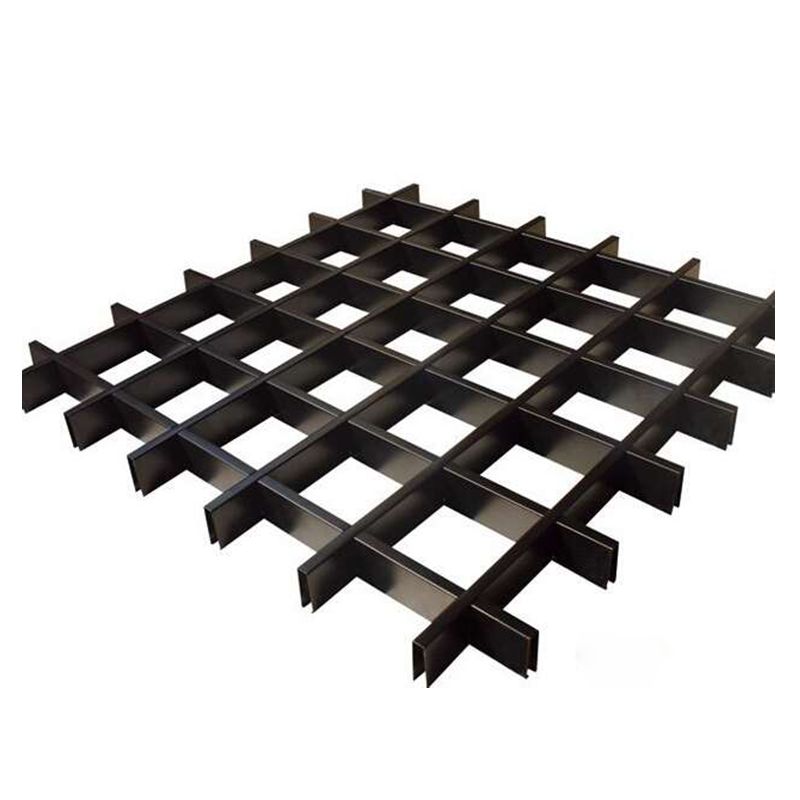

Shape | Grid | More out-shape can contact with us |
Certificate | ISO、SGS |
|
Packaging Details | Carton |
|
Lead Time | About 20days after receiving deposit |
|

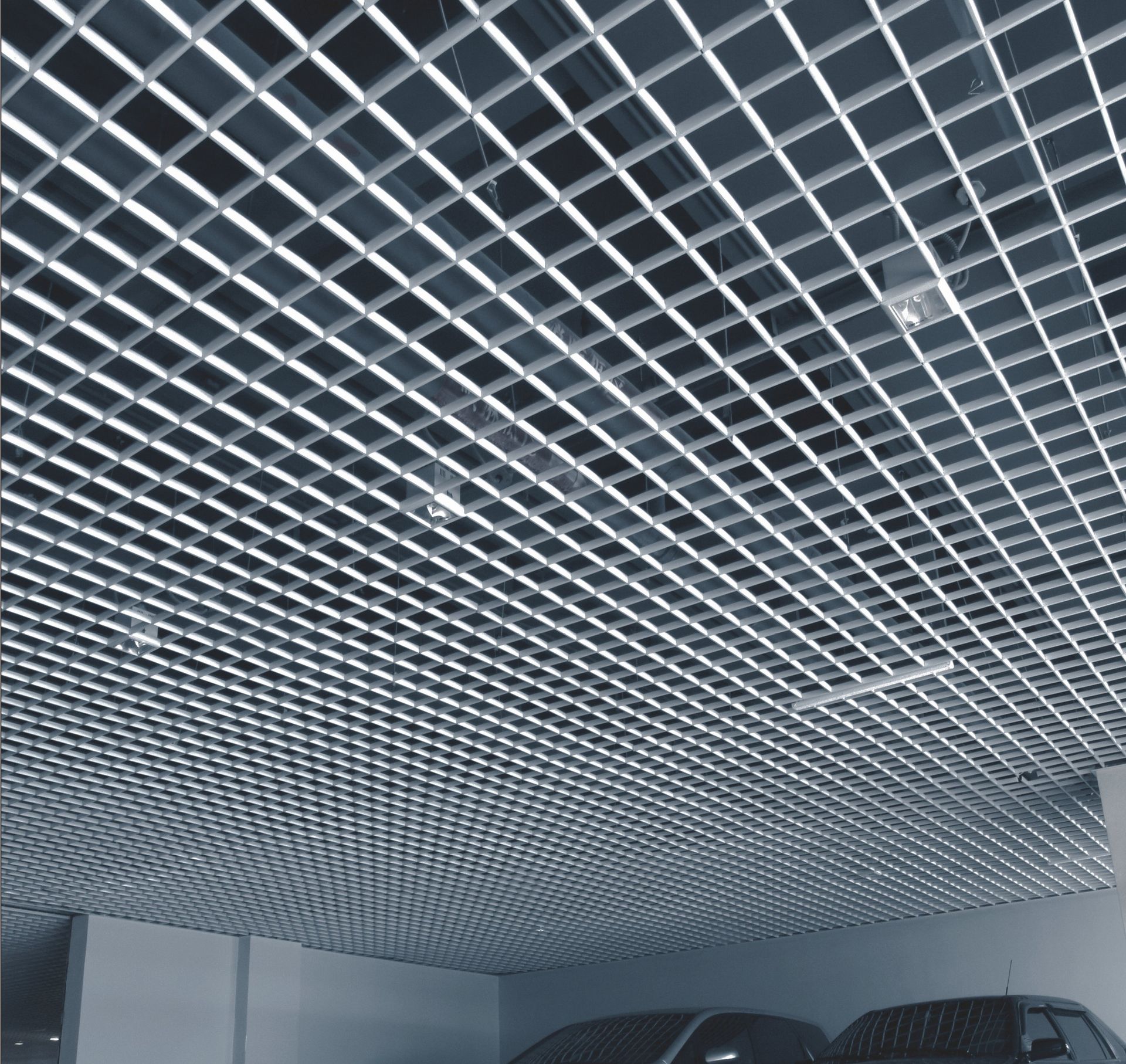

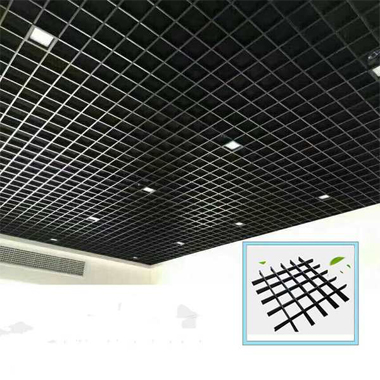

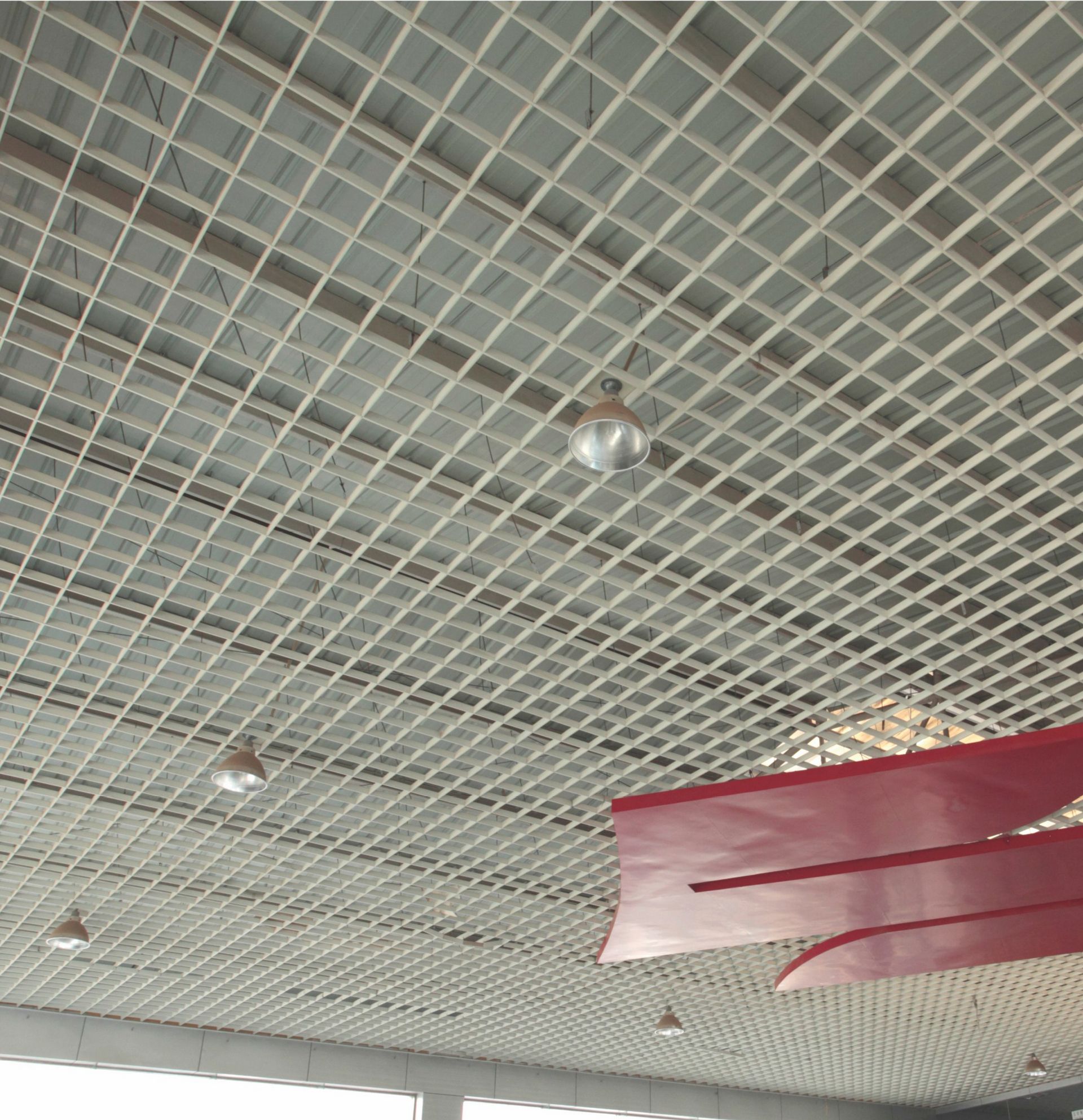

Application | Mall、Metro Station、Airport、Train Station、Supermarket、Hotel | |
Advantage | Grid ceiling is suitable for large places and effectively hide the pipe and other similar facilities which in the ceiling. It has the advantage for good ventilation and strong decorative. After installation, it is full of 3D sense with crisscross and distinct layers. | |
Product specification
Standard specification sheet | ||
| Width（mm） | Height (mm) | Thickness (mm) |
| 10、15 | 30 | 0.3~0.6 |
| 10、15 | 35 | 0.3~0.6 |
| 10、15 | 40 | 0.3~0.6 |
| 10、15 | 45 | 0.3~0.6 |
| 10、15 | 50 | 0.3~0.6 |
| Special specifications can contact with us | ||
Grid ceiling need to be used for per square meter | ||||
Size（mm） | Length/pcs （mm） | m/㎡ | Pcs/㎡ | Hanging part/㎡ |
50*50 | 2000 | 40 | 20 | 1 |
75*75 | 1950 | 26.7 | 13.7 | 1 |
100*100 | 2000 | 20 | 10 | 1 |
150*150 | 1950 | 13.3 | 6.8 | 1 |
200*200 | 2000 | 10 | 5 | 1 |
Special specifications can contact with us | ||||

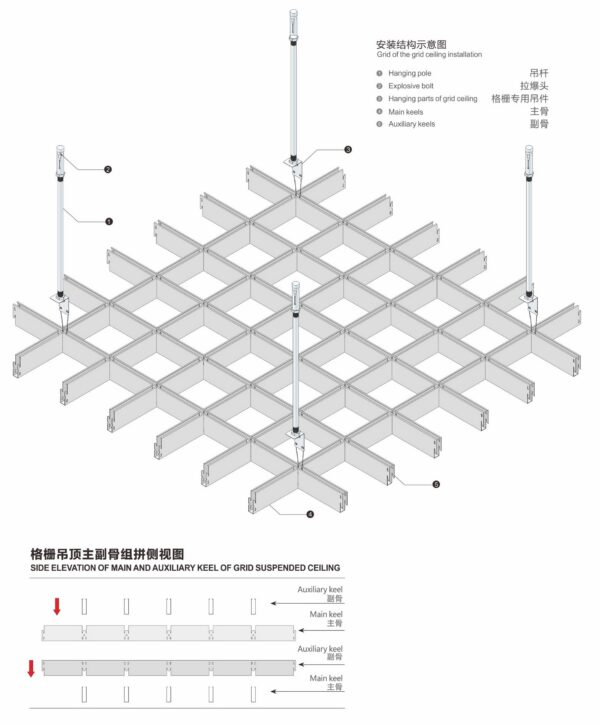

Installation
- Install the grid ceiling on the floor first;
- Lift the prepared grid ceiling with suspending parts, rod, expansion bolts and nut;
- Adjust the whole grid ceiling to the same height.
