Description
Material | Aluminum alloy（1100/3003） | More material choice can contact with us |

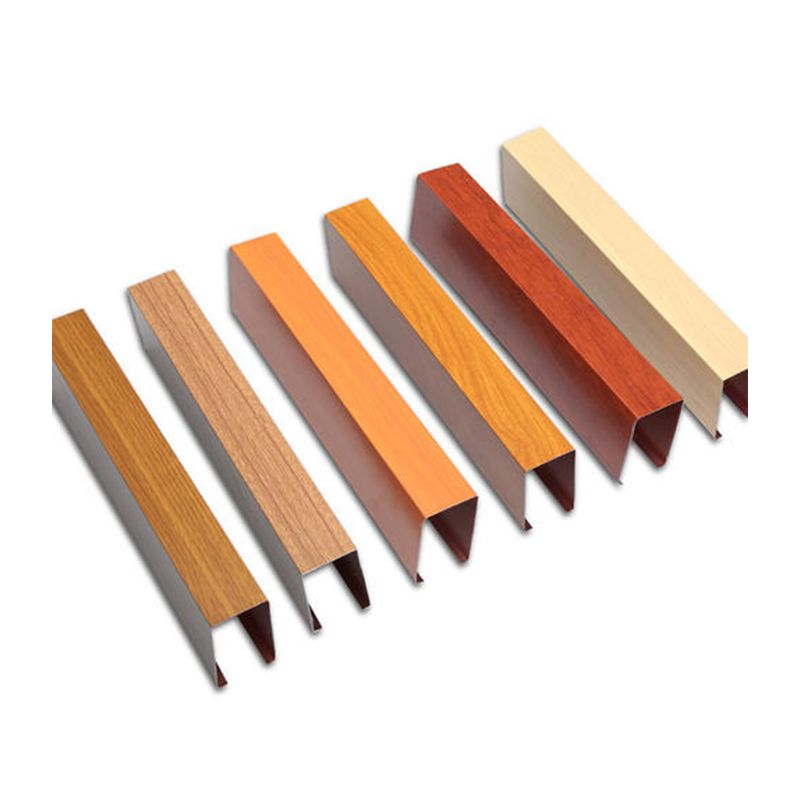

Surface Treatment | Powder coating, Roll coating, Film covered, thermal transfer | More surface treatment can contact with us |
Shape | Groove , U-groove, Round-groove, ect., | More out-shape can contact with us |
Certificate | ISO、SGS |
|
Packaging Details | Carton |
|
Lead Time | About 20days after receiving deposit |
|

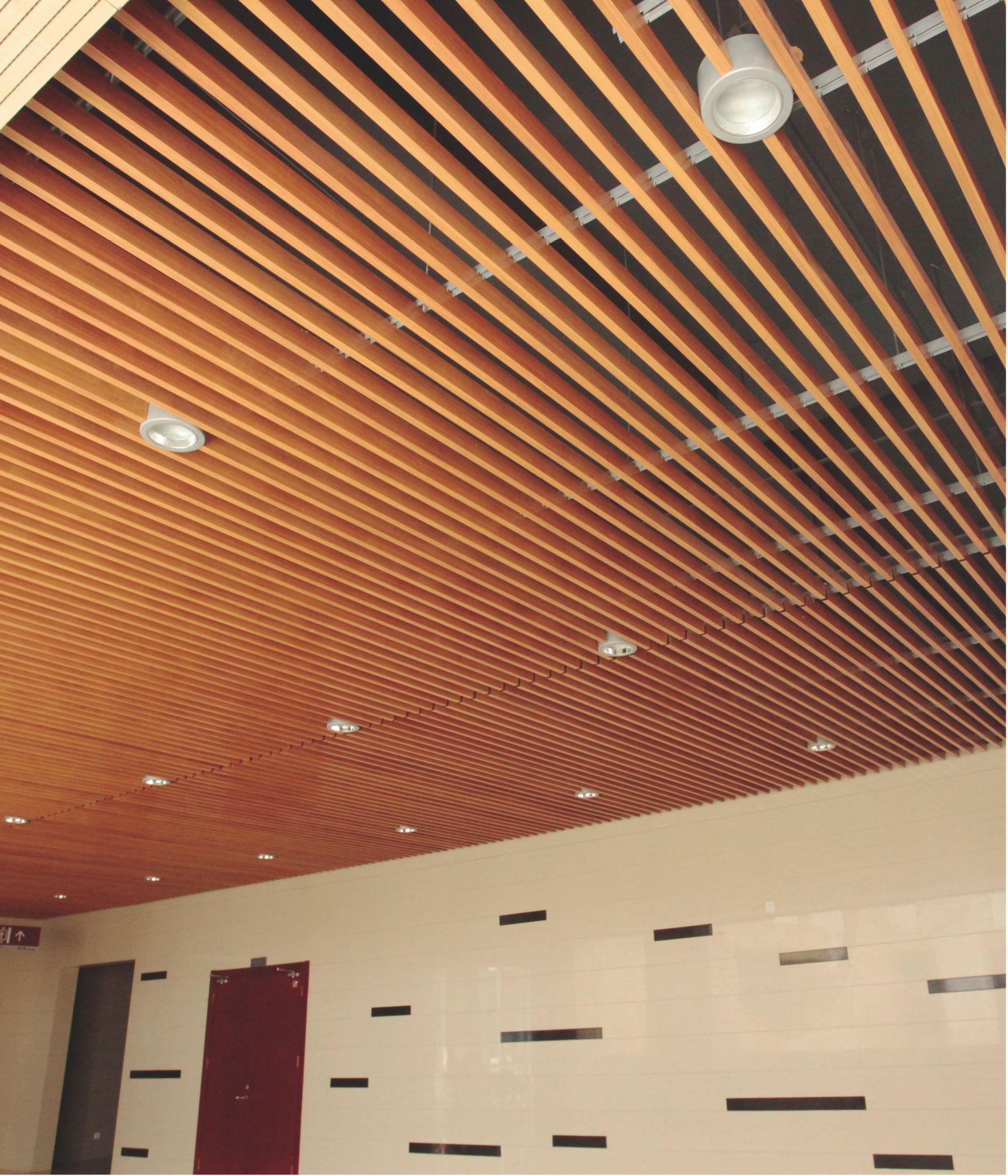

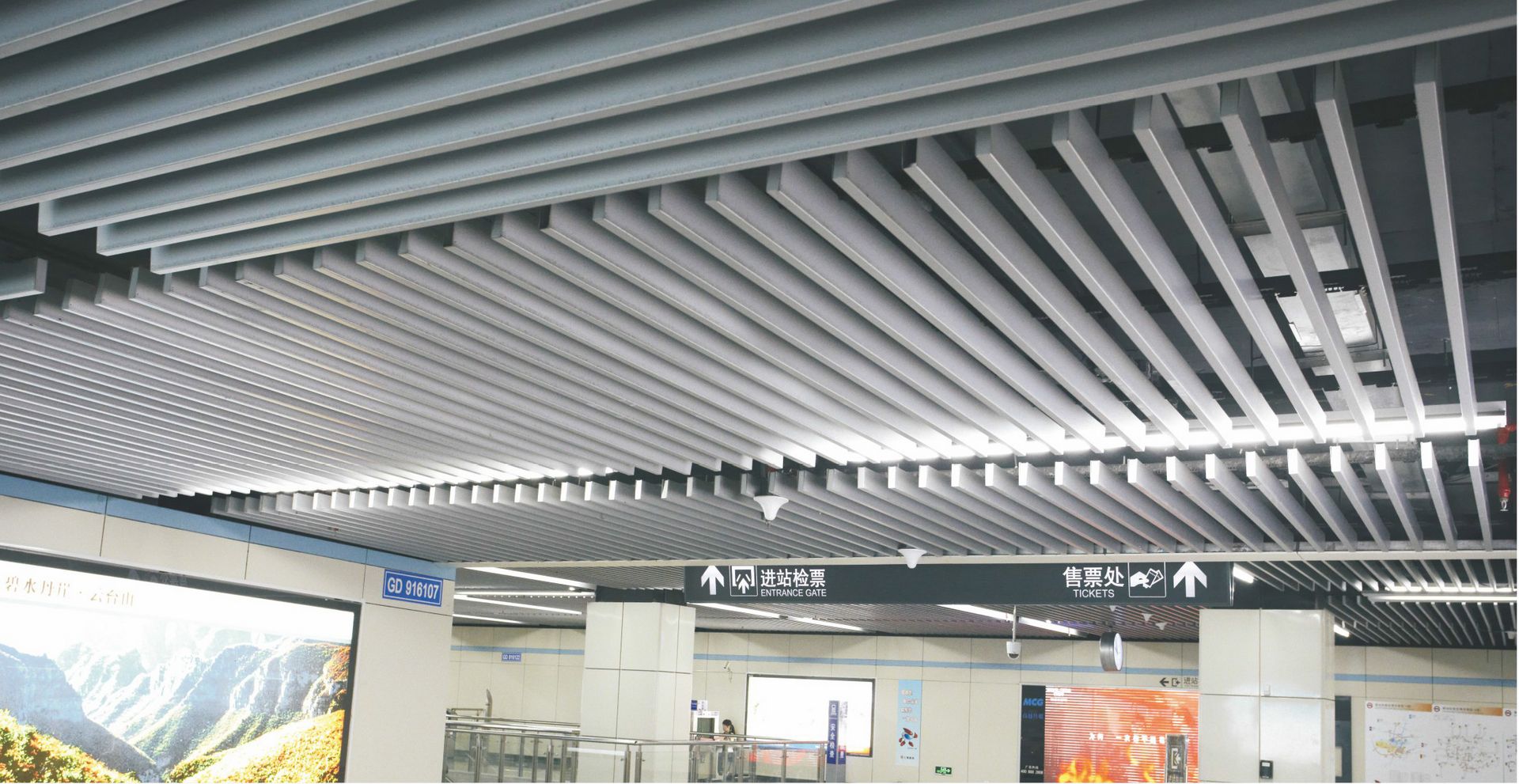

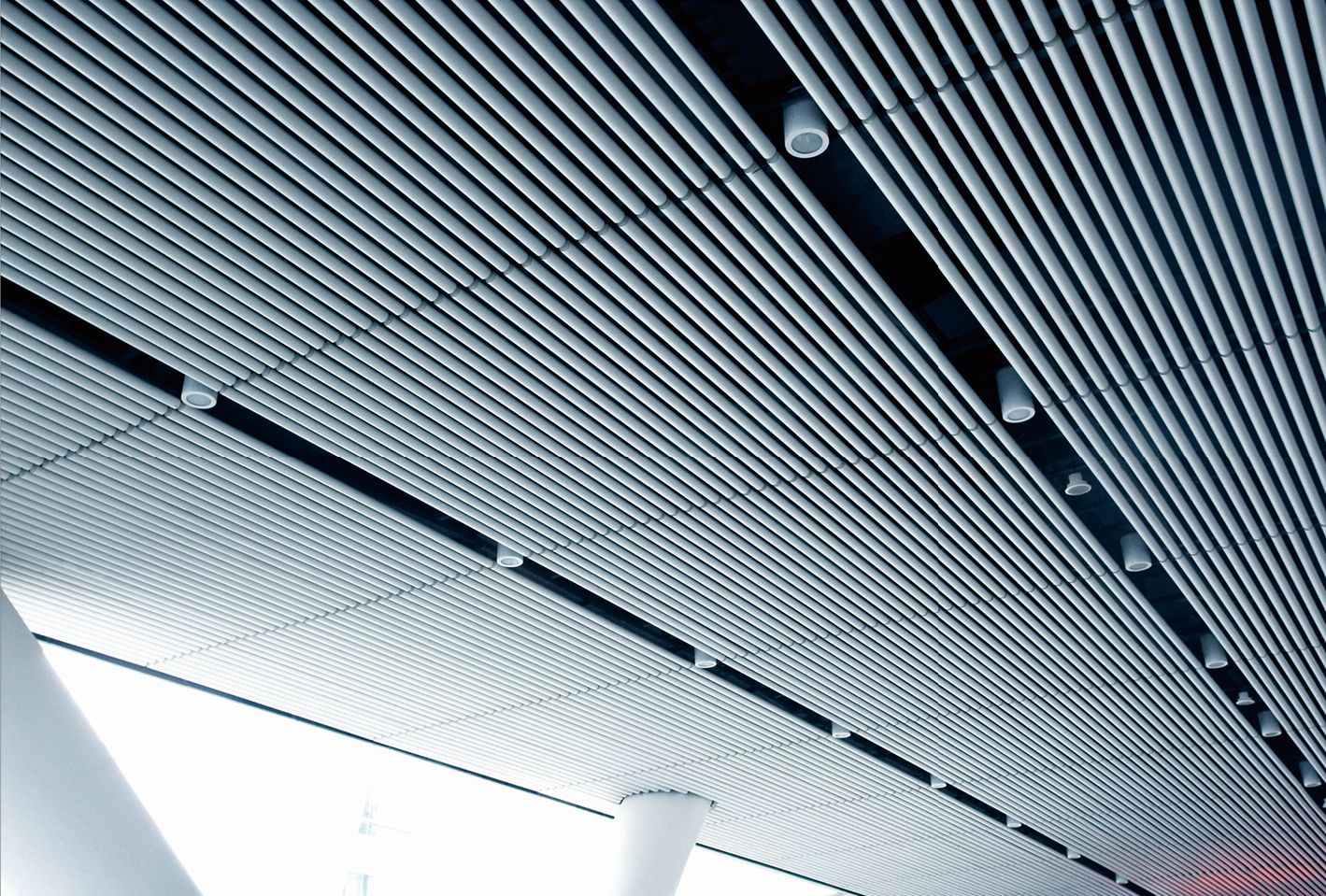

Application | Mall、Metro Station、Airport、Train Station、Supermarket、Hotel | |
Advantage | Box Curtain Ceiling can adjust the visual height of decorative space, can effectively hide the pipeline and other supporting facilities. At the same time, it has beautiful decorative with mix specification, mix color. It also has the advantage for good ventilation, flexible disassembly and installation, easy maintenance. | |
Product specification
Shape | Width（mm） | Height (mm) | Thickness (mm) | Length（m） |

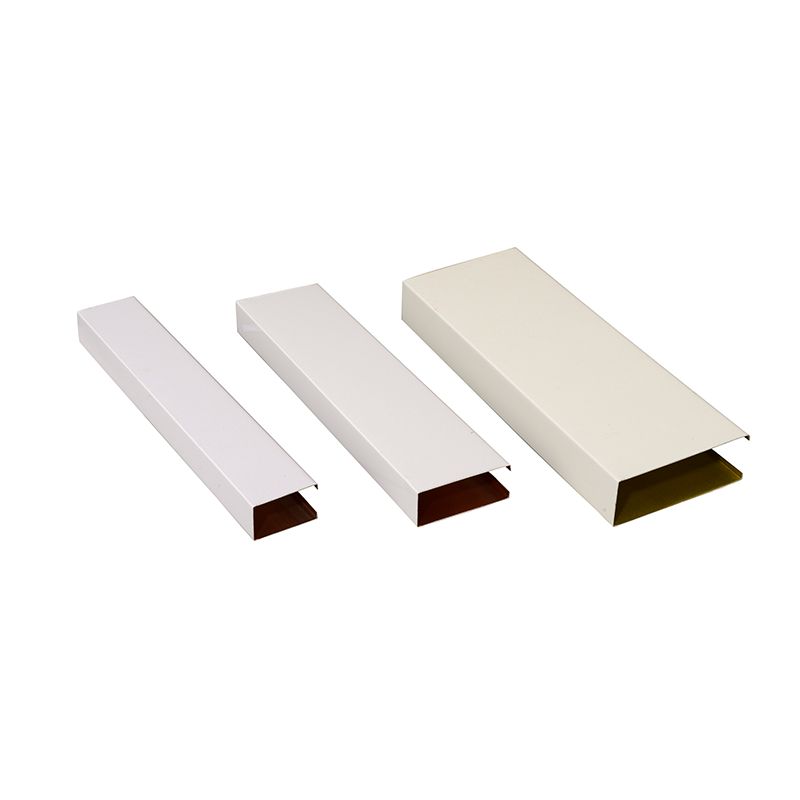

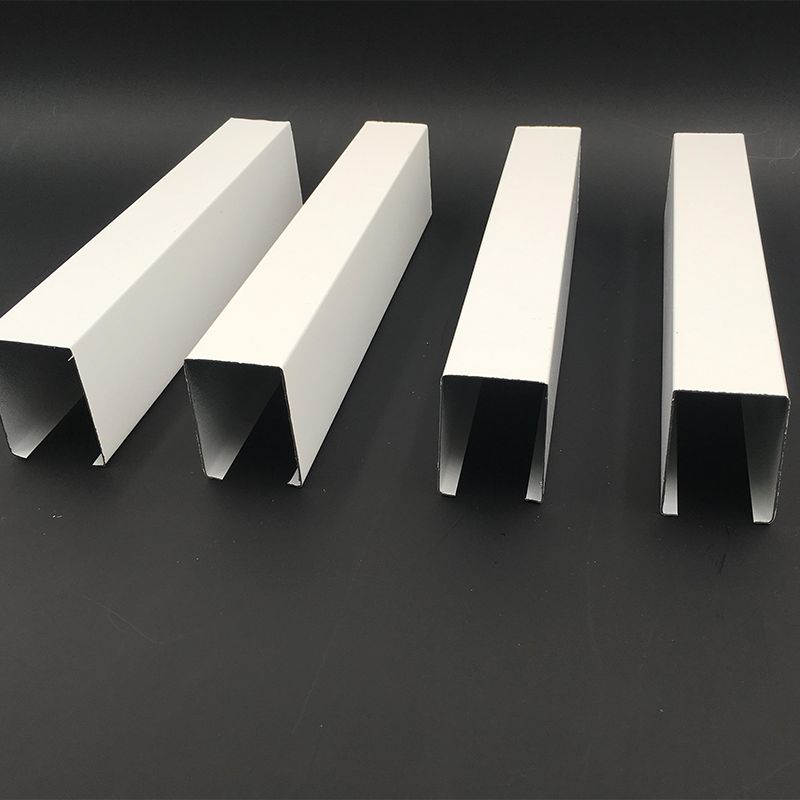

U-groove | 25~200 | 20~200 | 0.5~1.0 | Max 6m |
Groove | 25~200 | 20~200 | 0.8~2.0 | Max 6m |

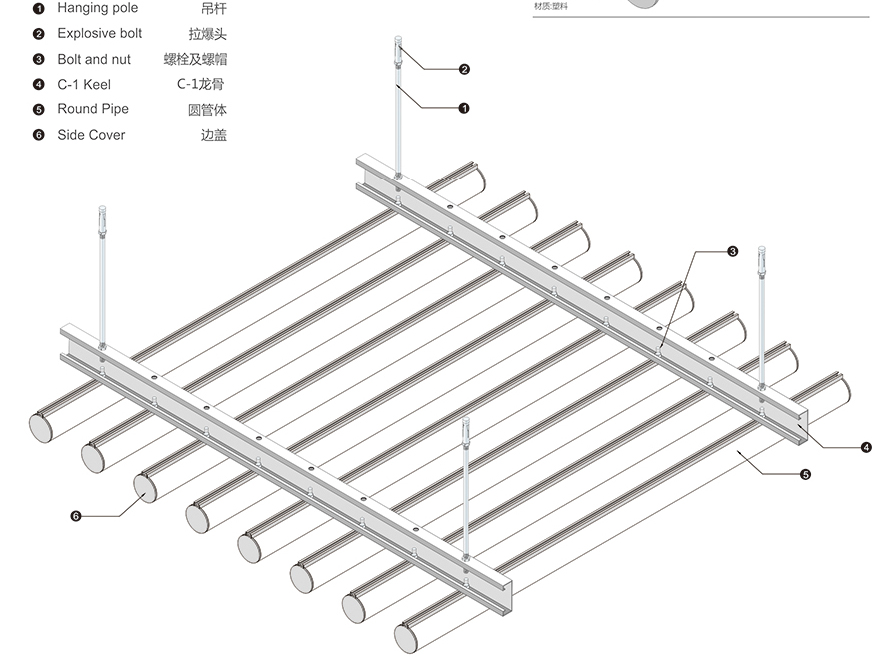

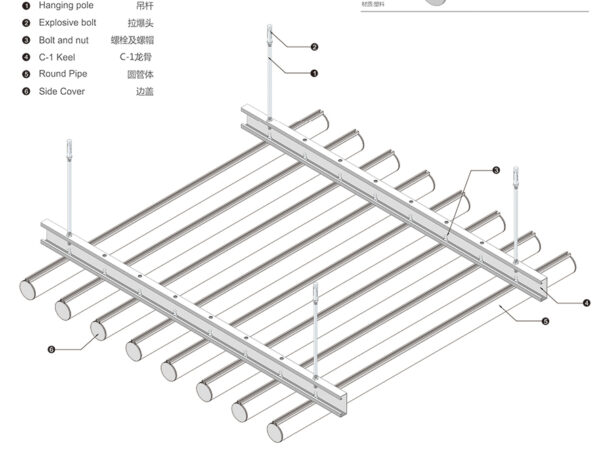

Round-groove | 50 | 57 | 0.8~2.0 | Max 6m |
More specifications can contact with us. | ||||

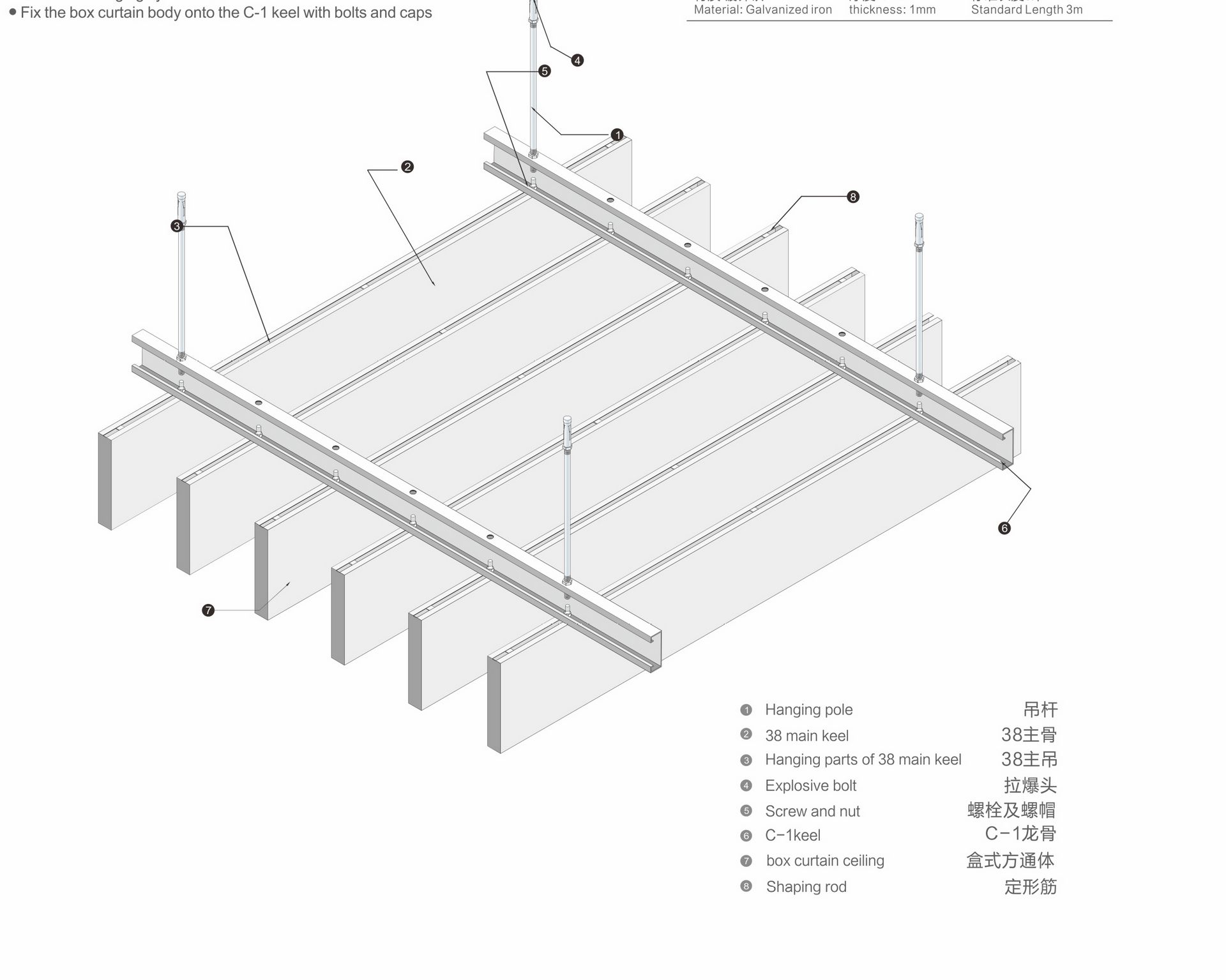

Installation
- Brush the facilities which above the ceiling to black;

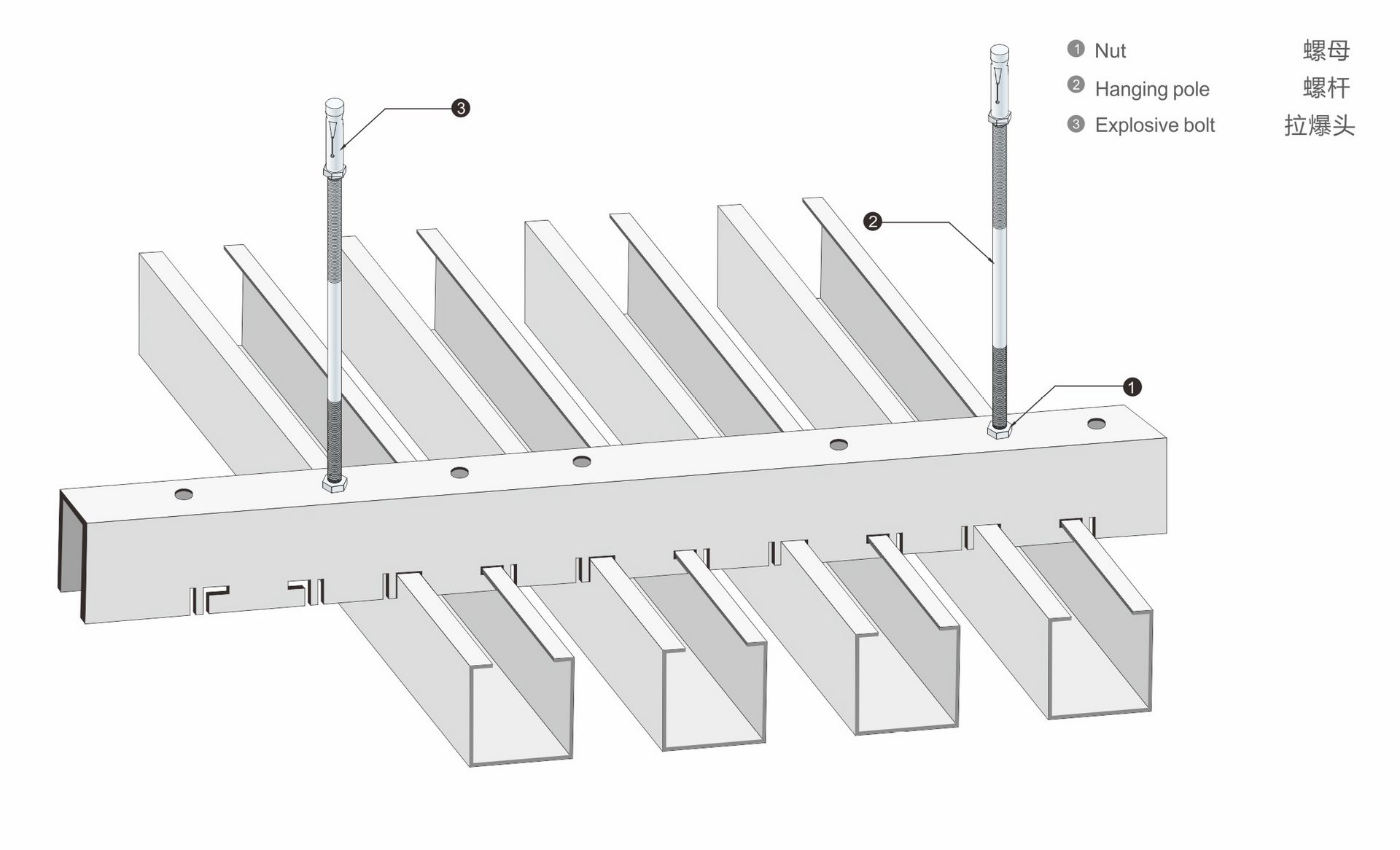

- Lift the 38 main keel with hanging pole, explosive bolt and 38 main hanger;
- Connect the C-1 keel and the 38 main keel with C-1hanger, adjust the whole hanging system to the same height.
- Fix the box curtain body onto the C-1 keel with bolts and caps.
